Unipolar earthing equipment PATF-MPU
click on image to enlarge

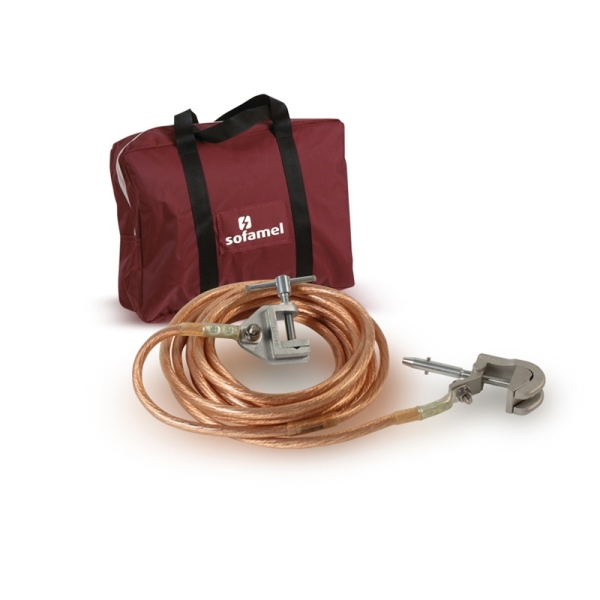

Earthing equipment for electrical traction lines (catenaries). It has a MPU/B or MPU/H clamp which allows the earthing connection of the lines for repair operations.

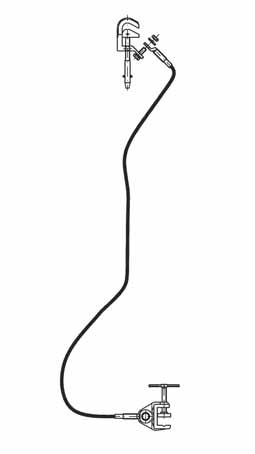

Composed of:

  • 1 MPU aluminium alloy clamp closing by screw and bayonet fixing (MPU/B) or hexagonal -12 (MPU/H). For cylindrical conductors with diameter between 4 mm and 30 mm.
  • 1 copper cable with PVC insulation of 50 mm2 section and 7 m long.
  • 1 TT-83 self-milling earth lathe.
  • 1 carrying bag to store and transport the equipment.

Code 666100 - Ref. PATF-MPUB/50
Code 666110 - Ref. PATF-MPUH/50
