Combined fibreglass ladder - EF/M

You are here:ProductsSeparatorPolyester-fiberglass laddersSeparatorCombined fibreglass ladder - EF/M
Combined fibreglass ladder - EF/M

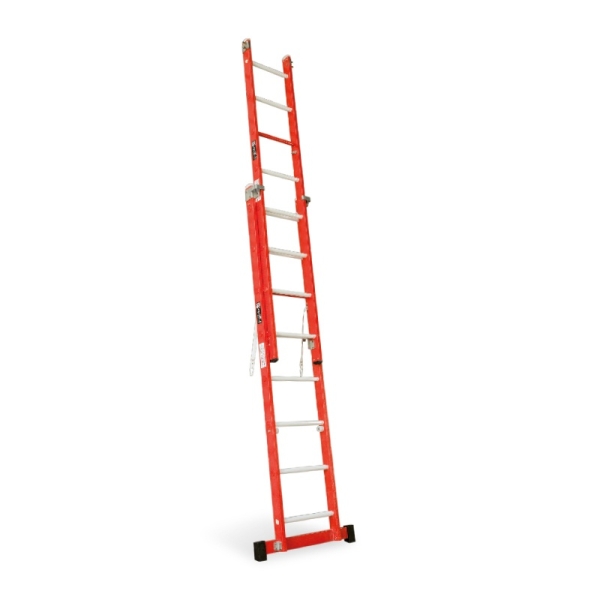

click on image to enlarge

The struts and the rungs are made of fiberglass. The insulation between rungs is 100 kV. Meet the EN 131, UNE-EN 50528, UNE-EN 61478 standards.

• Ladder with different possible applications, such as scissor, extendable in two separate sections.
• Features two locking spreader tapes between the two sections of the ladder to prevent it opening up when used in scissor format.
• With top wheels for ease of movement.
• Solid rungs for those most susceptible to wear and tear, increasing ladder’s durability (first section of base part and last section of extendable part).
• Rung marked in red as per EN-131 standard to indicate highest rung limit and not for use.

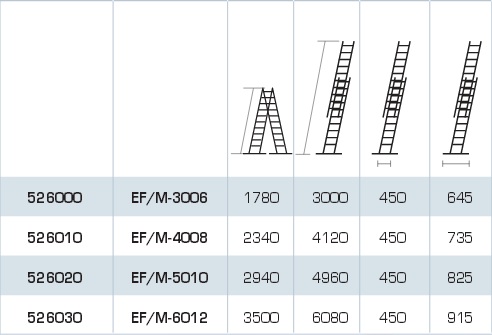

CodeReference
Length folded
Length unfolded
Steps
Weight
526000
EF/M-3006
1,78 m
3,00 m2 x 615 kg
526010
EF/M-4008
2,34 m
4,12 m2 x 818 kg
526020
EF/M-5010
2,94 m
4,96 m2 x 1021 kg
526030
EF/M-6012
3,50 m
6,08 m2 x 1224 kg
