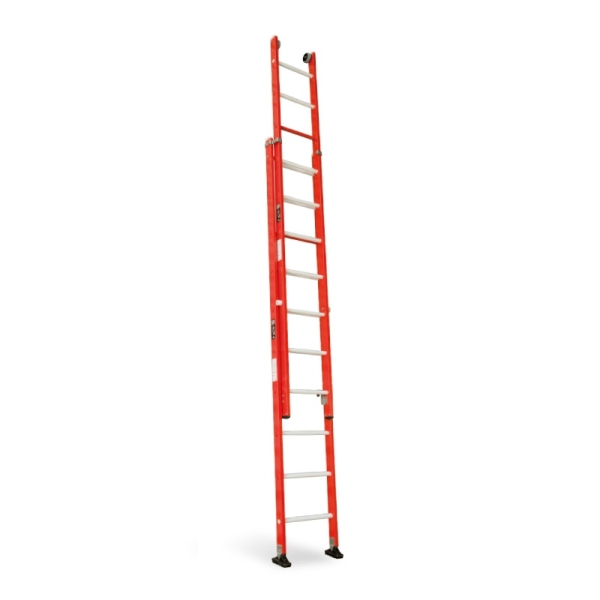

Manually extendable two-section ladder - EF/E
click on image to enlarge

The struts and the rungs are made of fibreglass. The insulation between rungs is 100 kV. Meet the EN 131, UNE-EN 50528, UNE-EN 61478 standards.

• With top wheels for ease of movement.
• The two sections can be used separately.
• Swivel feet as added safety element.
• Solid rungs for those most susceptible to wear and tear, increasing ladder’s durability (first section of base part and last section of extendable part).
• Rung marked in red as per EN-131 standard to indicate highest rung limit and not for use.

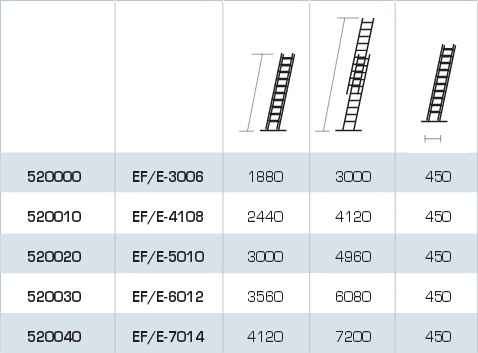

CodeReference
Length folded
Length unfolded
Steps
Weight
520000
EF/E-3006
1,88 m
3,00 m2 x 614 kg
520010
EF/E-4108
2,44 m
4,12 m
2 x 817 kg
520020
EF/E-5010
3,00 m
4,96 m
2 x 1021 kg
520030
EF/E-6012
3,56 m
6,08 m2 x 1224 kg
520040
EF/E-7014
4,12 m
7,20 m
2 x 1427 kg
