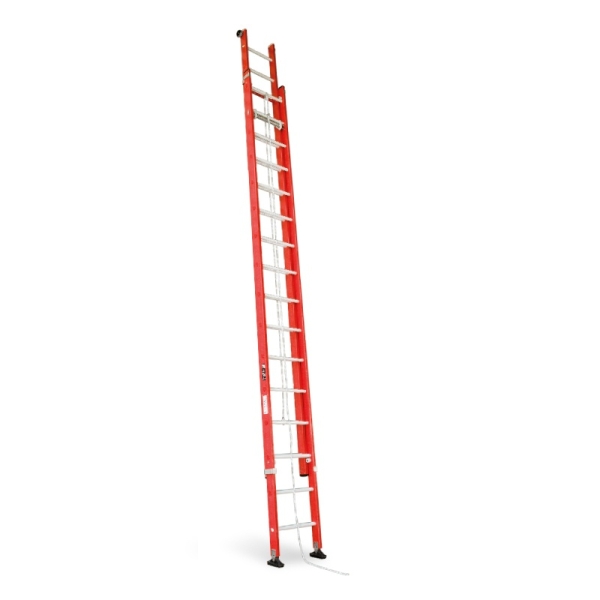

The struts and the rungs are made of fibreglass. The insulation between rungs is 100 kV. Meet the EN 131, UNE-EN 50528, UNE-EN 61478 standards.
• System actuated by rope and pulley to deploy the second section, for ease of use by operator.
• With top wheels for ease of movement.
• Swivel feet as added safety element.
• Solid rungs for those most susceptible to wear and tear, increasing ladder’s durability (first section of base part and last section of extendable part).
• Rung marked in red as per EN-131 standard to indicate highest rung limit and not for use.

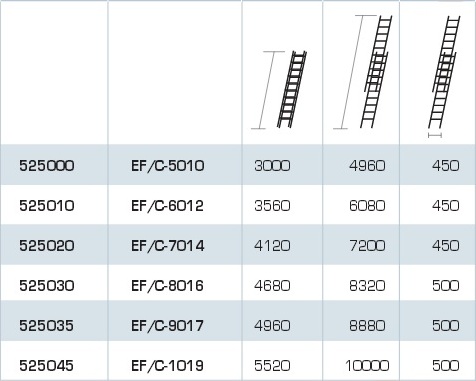

| Code | Reference | Length folded | Length unfolded | Steps | Weight |
525000 | EF/C-5010 | 3,00 m | 4,96 m | 2 x 10 | 24 kg |
525010 | EF/C-6012 | 3,56 m | 6,08 m | 2 x 12 | 27 kg |
525020 | EF/C-7014 | 4,12 m | 7,20 m | 2 x 14 | 30 kg |
525030 | EF/C-8016 | 4,68 m | 8,32 m | 2 x 16 | 40 kg |
525035 | EF/C-9017 | 4.96 m | 8,88 m | 2 x 17 | 42 kg |
525045 | EF/C-1019 | 5,52 m | 10,0 m | 2 x 19 | 46 kg |
