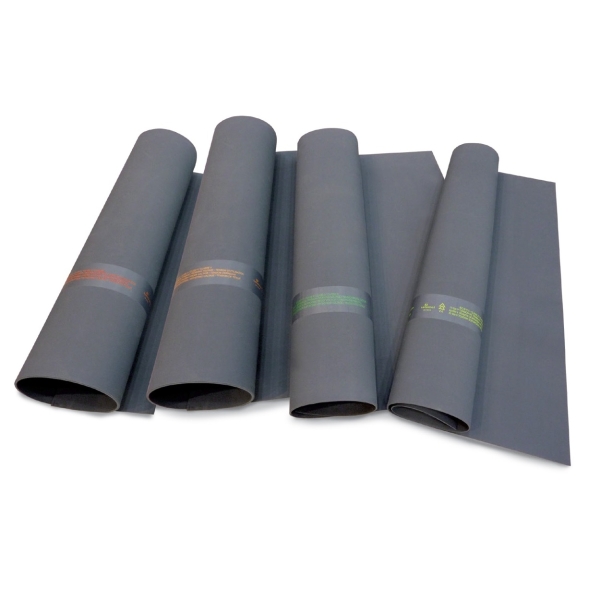

Insulating mat AD (585 AD)

You are here:ProductsSeparatorInsulationSeparatorInsulating mat AD (585 AD)
Insulating mat AD (585 AD)
click on image to enlarge

Specific Rubber Base: narural rubber SBR.
Specific weight: 1.51 g/cm³ (specific gravity)
Hardness: 71 Shore A
Tensile Strenght: 75.5 Kg/cm²
Elongation at break: 362 %
Resistance to tearing: 20 Kg/cm²
Resistance to abrasión: 182 mm³
Temprature Feild: -40 °C / +70 °C

Chemical resistance:
• Acids and Bases diluted - Moderate
• Acids and Bases Concentrates - Not recommended
• Hydrocarbon - Not recommended
• Organic solvents - Not recommended

According to IEC 61111.

We can customize the lenght of the mats as per our clients’ requests (max 10 m).

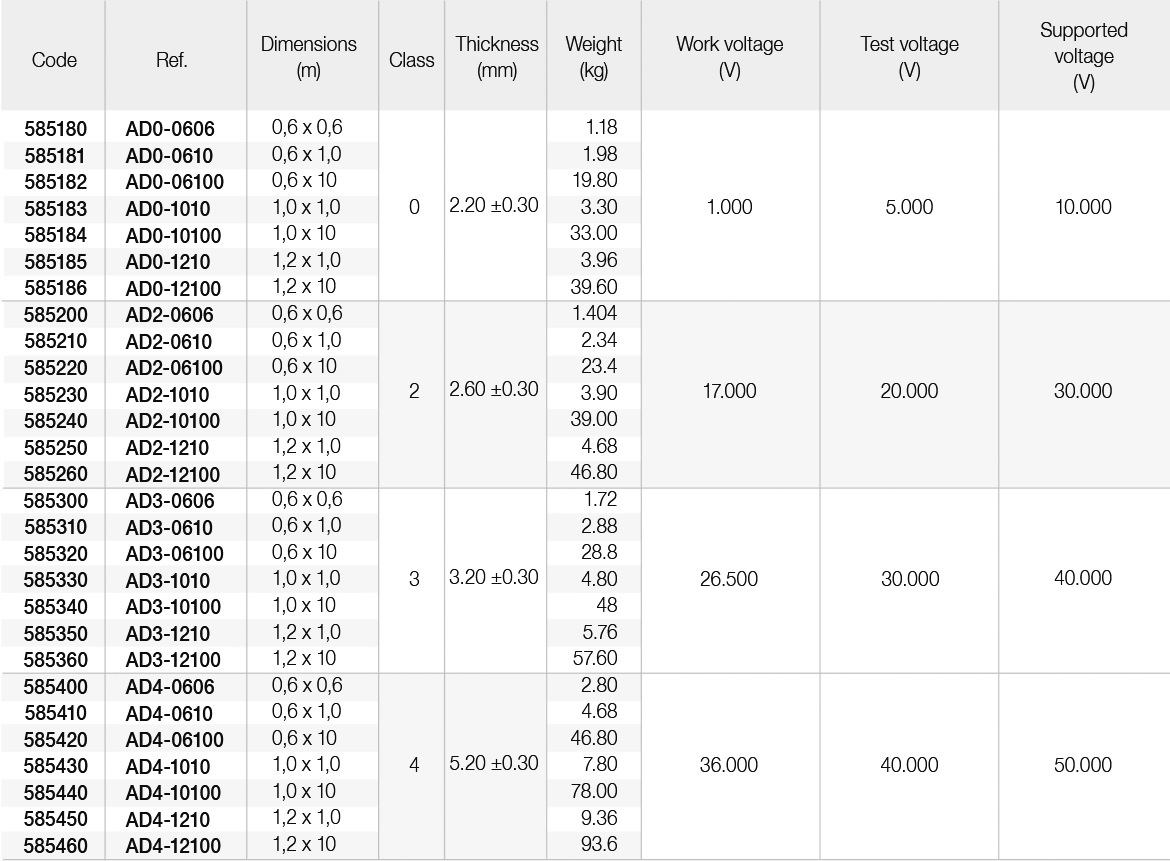

PRODUCT DIMENSIONS AND CHARACTERISTICS
